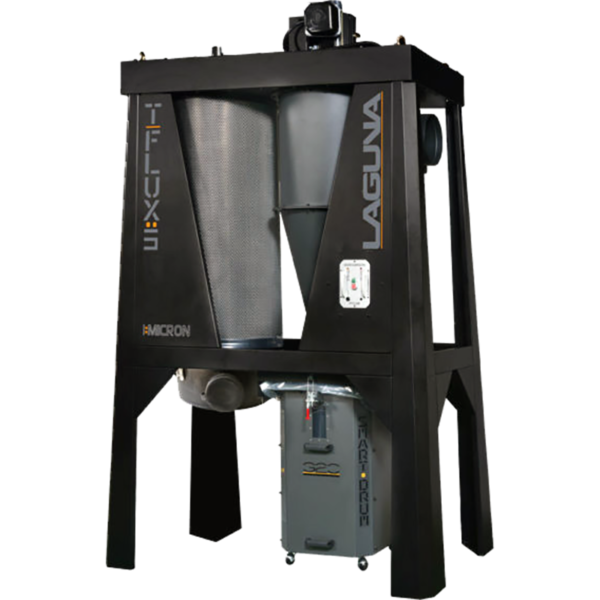

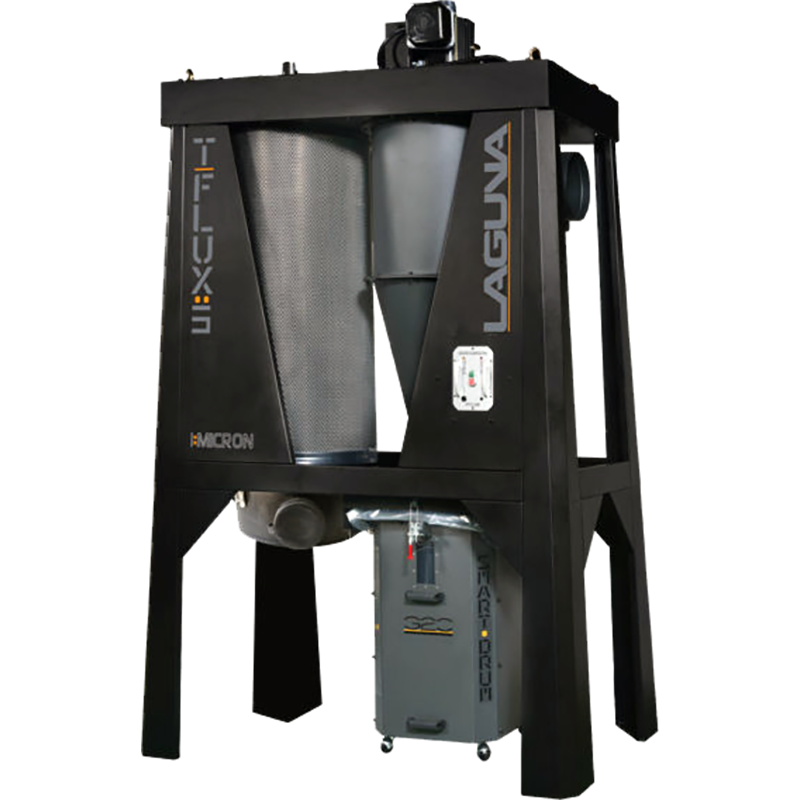

Laguna T|Flux: 5 Cyclone Dust Collectors

The T|Flux: 5 Cyclone Dust Collector is a central cyclone dust collection system ideal for use with multiple workstations and designed for heavy-duty industrial use.

SKU AD-LAGTFLUX5-CYDC Category Tags , ,

Share Now

Description

The T|Flux cyclones are equipped with a 10″ port that splits into 3 x 4″, allowing you to run a large diameter pipe system throughout your shop with drops to the individual stations.

Features

  • UL/CSA Approved
  • 3-year Warranty
  • Featured black 1 micron canister can collect at least 99.97% of particles as small as 1.2-2 microns. With proper usage, you will have a clean shop.
  • Inlet Diameter: 10″
  • Max Static Pressure: 12.1″ of Water
  • Central dust collection unit designed for multiple work-stations
  • Sunken Radio Frequency Remote Switch with LED alerts when drum is full and/or filter is dirty
  • Easy drum disconnect system
  • Balanced To: ISO 1940

Additional information

Power

220V/1/60Hz (22.4 Amps)

Motor

5.0 HP TEFC 3450 RPM

Impeller

16″ Steel, Radical Fin

Airflow

Up to 2450 CFM

Drum Capacity

54 gallons

Width

39"

Height

111"

Depth

73"

Weight

717 lbs

Noise

76 dBA

Filter Surface Area

162ft²
