CleanBox Portable Fume Extractors

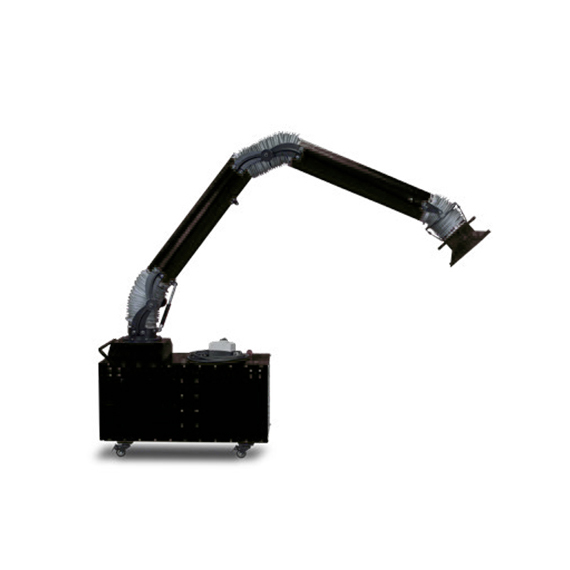

The CleanBox Portable Fume Extractor is designed to capture and clean medium to heavy duty welding fumes at source, preventing airborne contaminants from entering your breathing zone.

Featuring an externally articulated capture arm and casters for easy positioning and mobility.

Share Now

Description

Applications

  • Welding
  • Grinding
  • Soldering
  • Deburring
  • Sanding1

1 – Non-combustible dust only

Features

  • Stable: Low center of mass and four locking casters offers excellent stability during use.
  • High Flow: Equipped with a 1.5 HP motor, high flow fan impeller, and a large surface area MERV 15 filter.
  • Service Indicator: Once pressure differential reaches a pre-set value (1,000 kPa) due to a clogged filter, a service indicator light will turn on, to remind the user to inspect and clean or replace the filter.
  • Plug & Play: 13 Ampere, 120 Volt, single phase power source allows for the CleanBox to be plugged in and used with most outlets.

Additional information

Color

Black

Power

110V/1/60Hz

Motor

1.5 HP

Airflow

1200 CFM

Arm Length

7 ft (standard), 13 ft (optional)

Arm Diameter

6"

Width

22.5"

Height

31.5"

Depth

46"

Weight

210 lbs
